- 規格型號：20088361
- 頻率：11.0592MHz

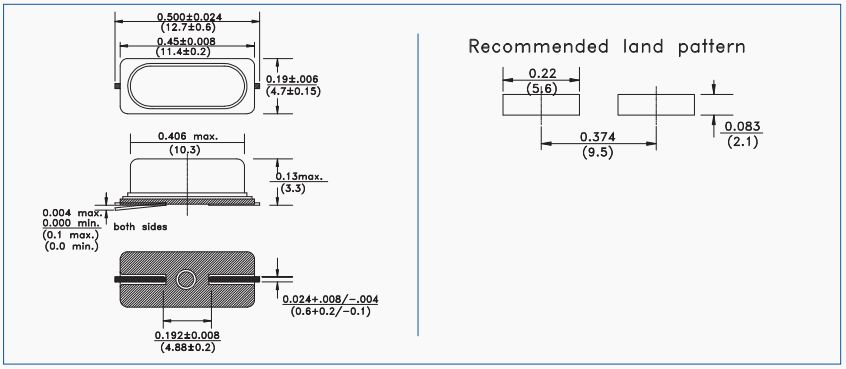

- 尺寸：12.7*4.7mm
- 產品描述：ABRACON美國49SMD晶振,ABLS2-11.0592MHZ-B1U-T汽車收音機晶振,ABLS2環保晶振，美國Abracon晶振公司，艾博康晶振，ABLS2晶振，進口晶振，ABLS2-11.0592MHZ-B1U-T晶振，無源晶振，高精度晶振，石英晶體，低損耗晶振，汽...

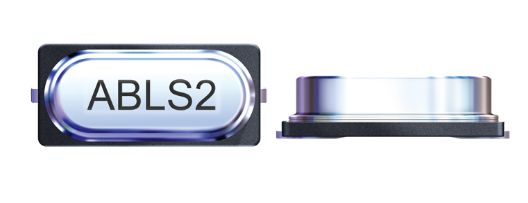

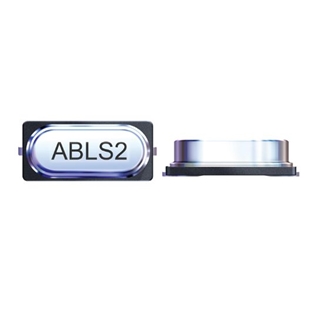

ABRACON美國49SMD晶振,ABLS2-11.0592MHZ-B1U-T汽車收音機晶振,ABLS2環保晶振
航欄(10).jpg)
ABRACON美國49SMD晶振,ABLS2-11.0592MHZ-B1U-T汽車收音機晶振,ABLS2環保晶振，美國Abracon晶振公司，艾博康晶振，ABLS2晶振，進口晶振，ABLS2-11.0592MHZ-B1U-T晶振，無源晶振，高精度晶振，石英晶體，低損耗晶振，汽車晶振，移動通訊晶振，美國晶振，高品質晶振，低損耗晶振，高精度晶振，49SMD晶振，四腳晶振，貼片晶振。適用于嚴格的穩定性和擴展，溫度范圍，計算機，調制解調器，微處理器，無線應用

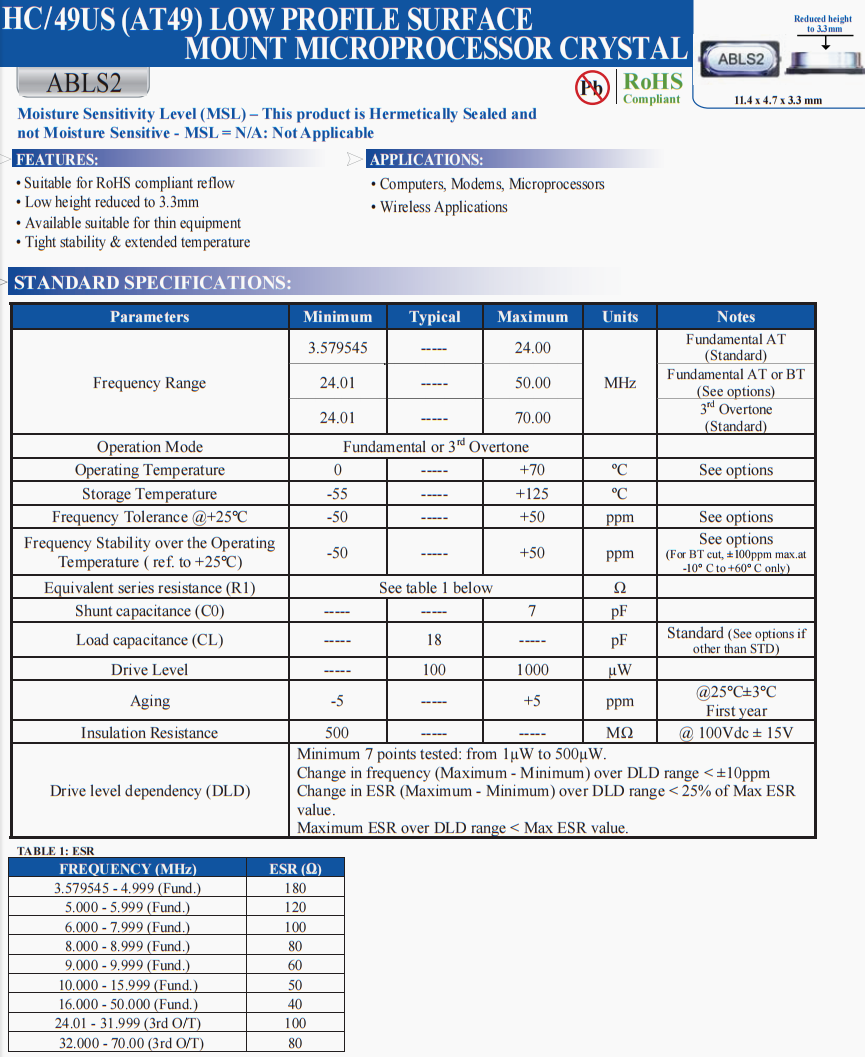

| 參數 | Minimum | Typical | Maximum | Units | Notes |
| 頻率 | 3.579545 | ----- | 24.00 | MHz | Fundamental AT(Standard) |
| 24.01 | ----- | 50.00 | Fundamental AT or BT(See options) | ||
| 24.01 | ----- | 70.00 | 3rd Overtone(Standard) | ||
| 工作模式 | Fundamental or 3rd Overtone | ||||
| 工作溫度 | 0 | ----- | +70 | ºC | See options |
| 儲存溫度 | -55 | ----- | +125 | ºC | |
| 頻率容差 | -50 | ----- | +50 | ppm | See options |
| 頻率穩定度 | -50 | ----- | +50 | ppm |
See options (For BT cut, ±100ppm max.at - 10° C to +60° C only ) |
| 等效串聯電阻 | See table 1 below | ? | |||
| 分流電容 | ----- | ----- | 7 | pF | |
| 負載電容 | ----- | 18 | ----- | pF |
Standard (See options if other than STD) |
| 驅動電平 | ----- | 100 | 1000 | µW | |
| 老化 | -5 | ----- | +5 | ppm |
@25°C±3°C First year |
| 絕緣電阻 | 500 | ----- | ----- | M? | @ 100Vdc ± 15V |
ABRACON美國49SMD晶振,ABLS2-11.0592MHZ-B1U-T汽車收音機晶振,ABLS2環保晶振
| 編碼 | 品牌 | 型號 | 頻率 | 頻率穩定度 | 頻率容差 | 負載 |
| ABLS2-10.000MHZ-B1U-T | Abracon | ABLS2 | 10 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-10.000MHZ-B4Y-T | Abracon | ABLS2 | 10 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-10.000MHZ-D4Y-T | Abracon | ABLS2 | 10 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-11.0592MHZ-B1U-T | Abracon | ABLS2 | 11.0592 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-11.0592MHZ-D4Y-T | Abracon | ABLS2 | 11.0592 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-11.059MHZ-B4Y-T | Abracon | ABLS2 | 11.059 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-11.2896MHZ-B4Y-T | Abracon | ABLS2 | 11.2896 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-12.000MHZ-B1U-T | Abracon | ABLS2 | 12 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-12.000MHZ-B4Y-T | Abracon | ABLS2 | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-12.000MHZ-D4Y-T | Abracon | ABLS2 | 12 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-12.288MHZ-B1U-T | Abracon | ABLS2 | 12.288 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-12.288MHZ-B4Y-T | Abracon | ABLS2 | 12.288 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-12.288MHZ-D4Y-T | Abracon | ABLS2 | 12.288 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-13.000MHZ-D4Y-T | Abracon | ABLS2 | 13 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-13.560MHZ-B1U-T | Abracon | ABLS2 | 13.56 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-13.560MHZ-B4Y-T | Abracon | ABLS2 | 13.56 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-14.31818MHZ-B1U-T | Abracon | ABLS2 | 14.31818 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-14.31818MHZ-B4Y-T | Abracon | ABLS2 | 14.31818 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-14.31818MHZ-D4Y-T | Abracon | ABLS2 | 14.31818 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-14.7456MHZ-B1U-T | Abracon | ABLS2 | 14.7456 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-14.7456MHZ-B4Y-T | Abracon | ABLS2 | 14.7456 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-14.7456MHZ-D4Y-T | Abracon | ABLS2 | 14.7456 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-15.000MHZ-D4Y-T | Abracon | ABLS2 | 15 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-15.360MHZ-B1U-T | Abracon | ABLS2 | 15.36 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-15.360MHZ-B4Y-T | Abracon | ABLS2 | 15.36 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-16.000MHZ-B1U-T | Abracon | ABLS2 | 16 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-16.000MHZ-B4Y-T | Abracon | ABLS2 | 16 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-16.000MHZ-D4Y-T | Abracon | ABLS2 | 16 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-16.384MHZ-B1U-T | Abracon | ABLS2 | 16.384 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-16.384MHZ-B4Y-T | Abracon | ABLS2 | 16.384 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-16.384MHZ-D4Y-T | Abracon | ABLS2 | 16.384 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-18.432MHZ-B1U-T | Abracon | ABLS2 | 18.432 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-18.432MHZ-B4Y-T | Abracon | ABLS2 | 18.432 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-18.432MHZ-D4Y-T | Abracon | ABLS2 | 18.432 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-19.200MHZ-B1U-T | Abracon | ABLS2 | 19.2 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-19.200MHZ-B4Y-T | Abracon | ABLS2 | 19.2 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-19.6608MHZ-D4Y-T | Abracon | ABLS2 | 19.6608 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-20.000MHZ-B1U-T | Abracon | ABLS2 | 20 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-20.000MHZ-B4Y-T | Abracon | ABLS2 | 20 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-20.000MHZ-D4Y-T | Abracon | ABLS2 | 20 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-22.000MHZ-B1U-T | Abracon | ABLS2 | 22 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-22.1184MHZ-B1U-T | Abracon | ABLS2 | 22.1184 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-22.1184MHZ-D4Y-T | Abracon | ABLS2 | 22.1184 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-24.000MHZ-B1U-T | Abracon | ABLS2 | 24 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-24.000MHZ-B4Y-T | Abracon | ABLS2 | 24 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-24.000MHZ-D4YF-T | Abracon | ABLS2 | 24 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-24.576MHZ-B1U-T | Abracon | ABLS2 | 24.576 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-24.576MHZ-B4Y-T | Abracon | ABLS2 | 24.576 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-24.576MHZ-D4YF-T | Abracon | ABLS2 | 24.576 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-25.000MHZ-2X-FT | Abracon | ABLS2 | 25 MHz | ±20ppm | ±20ppm | 18 pF |
| ABLS2-25.000MHZ-B1U-T | Abracon | ABLS2 | 25 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-25.000MHZ-B4Y-T | Abracon | ABLS2 | 25 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-25.000MHZ-D4Y-T | Abracon | ABLS2 | 25 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-25.000MHZ-D4YF-T | Abracon | ABLS2 | 25 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-26.000MHZ-B1U-T | Abracon | ABLS2 | 26 MHz | ±10ppm | ±30ppm | 18 pF |
| ABLS2-26.000MHZ-B4Y-T | Abracon | ABLS2 | 26 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-26.000MHZ-D4YF-T | Abracon | ABLS2 | 26 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-27.000MHZ-B1U-T | Abracon | ABLS2 | 27 MHz | ±10ppm | ±10ppm | 18 pF |
| ABLS2-27.000MHZ-B4Y-T | Abracon | ABLS2 | 27 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-27.000MHZ-D4YF-T | Abracon | ABLS2 | 27 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-28.63636MHZ-B4Y-T | Abracon | ABLS2 | 28.63636 MHz | ±30ppm | ±30ppm | 18 pF |
| ABLS2-29.4912MHZ-D4YF-T | Abracon | ABLS2 | 29.4912 MHz | ±30ppm | ±30ppm | 18 pF |
