- 規格型號：95773545
- 頻率：100MHz
- 尺寸：7.0x5.0mm
- 產品描述：CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：CWX823，編碼為：CWX823-100.0M，電壓：3.3V，頻率為：100MHz，頻率穩定性：50ppm，工作...

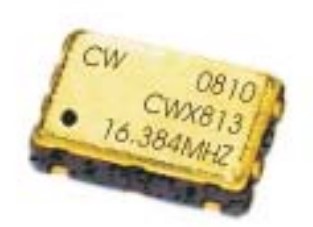

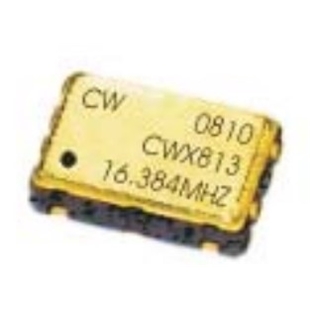

CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振
.jpg)
CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器，美國進口晶振，ConnorWinfield晶振，康納溫菲爾德晶振，型號：CWX823，編碼為：CWX823-100.0M，電壓：3.3V，頻率為：100MHz，頻率穩定性：±50ppm，工作溫度范圍：-20℃至+70℃，CMOS輸出晶振，小體積晶振尺寸：7.0x5.0mm表面安裝包是設計為高密度安裝，時鐘振蕩器，四腳貼片晶振，石英晶振，有源晶振，石英晶體振蕩器，具有超小型晶振，輕薄型晶振，康納-溫菲爾德CWX8xx系列是一個符合RoHS標準的5.0x7.0mm表面安裝，固定頻率晶體控制振蕩器（XO）。設計用于需要緊密的頻率穩定性和低抖動的應用程序。應用于：智能家居晶振，無線網絡晶振，GPS導航晶振，物聯網晶振，醫療設備晶振等應用。
CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器,產品特點：
CWX8xx型-系列，5.0x7.0mm表面安裝封裝
3.3V或5.0V操作，CMOS輸出邏輯
可用頻率穩定性：+/-25ppm 或 +/-50ppm
溫度范圍：-20至70°C貼片晶振
低抖動<1pS RMS，三態啟用/禁用，膠帶和卷軸包裝
CWX8xx型-系列，5.0x7.0mm表面安裝封裝
3.3V或5.0V操作，CMOS輸出邏輯
可用頻率穩定性：+/-25ppm 或 +/-50ppm
溫度范圍：-20至70°C貼片晶振
低抖動<1pS RMS，三態啟用/禁用，膠帶和卷軸包裝
| 型號 | CWX823 |
| 頻率 | 100 MHz |
| 電源電壓 | 3.3V |
| 輸入電壓 | Vcc+0.5 |
| 輸出 | CMOS |
| 工作溫度 | -20 °C ~ +70 °C |
| 保存溫度 | -55 °C ~ +125 °C |
CWX823-100.0M,7050mm晶振,ConnorWinfield高性能晶振,晶體振蕩器,尺寸圖
| 原廠代碼 | 晶振廠家 | 型號 | 頻率 |
| CWX823-012.0M | ConnorWinfield晶振 | CWX823 | 12MHz |
| CWX823-024.0M | ConnorWinfield晶振 | CWX823 | 24MHz |
| CWX823-050.0M | ConnorWinfield晶振 | CWX823 | 50MHz |
| CWX823-032.768M | ConnorWinfield晶振 | CWX823 | 32.768MHz |
| CWX823-018.432M | ConnorWinfield晶振 | CWX823 | 18.432MHz |
| CWX823-049.152M | ConnorWinfield晶振 | CWX823 | 49.152MHz |
| CWX823-016.0M | ConnorWinfield晶振 | CWX823 | 16MHz |
| CWX823-012.288M | ConnorWinfield晶振 | CWX823 | 12.288MHz |
| CWX823-020.0M | ConnorWinfield晶振 | CWX823 | 20MHz |
| CWX823-027.0M | ConnorWinfield晶振 | CWX823 | 27MHz |
| CWX823-033.333M | ConnorWinfield晶振 | CWX823 | 33.333MHz |
| CWX823-100.0M | ConnorWinfield晶振 | CWX823 | 100MHz |
| CWX823-001.544M | ConnorWinfield晶振 | CWX823 | 1.544MHz |
| CWX823-040.0M | ConnorWinfield晶振 | CWX823 | 40MHz |
| CWX823-033.0M | ConnorWinfield晶振 | CWX823 | 33MHz |
| CWX823-004.0M | ConnorWinfield晶振 | CWX823 | 4MHz |
| CWX823-025.0M | ConnorWinfield晶振 | CWX823 | 25MHz |
| CWX823-001.8432M | ConnorWinfield晶振 | CWX823 | 1.8432MHz |
| CWX823-064.0M | ConnorWinfield晶振 | CWX823 | 64MHz |
| CWX823-125.0M | ConnorWinfield晶振 | CWX823 | 125MHz |
| CWX823-156.25M | ConnorWinfield晶振 | CWX823 | 156.25MHz |
| CWX823-010.0M | 晶振訂制 | CWX823 | 10MHz |
| CWX823-029.4912M | ConnorWinfield晶振 | CWX823 | 29.4912MHz |
| CWX823-060.0M | ConnorWinfield晶振 | CWX823 | 60MHz |
| CWX823-024.576M | ConnorWinfield晶振 | CWX823 | 24.576MHz |
| CWX823-008.0M | ConnorWinfield晶振 | CWX823 | 8MHz |
| CWX823-007.3728M | ConnorWinfield晶振 | CWX823 | 7.3728MHz |
| CWX823-066.6666M | ConnorWinfield晶振 | CWX823 | 66.6666MHz |
| CWX823-032.0M | ConnorWinfield晶振 | CWX823 | 32MHz |
| CWX823-080.0M | ConnorWinfield晶振 | CWX823 | 80MHz |
| CWX823-016.384M | ConnorWinfield晶振 | CWX823 | 16.384MHz |
| CWX823-030.0M | ConnorWinfield晶振 | CWX823 | 30MHz |
| CWX823-044.736M | ConnorWinfield晶振 | CWX823 | 44.736MHz |
| CWX823-003.6864M | ConnorWinfield晶振 | CWX823 | 3.6864MHz |
| CWX823-014.31818M | ConnorWinfield晶振 | CWX823 | 14.31818MHz |
| CWX823-015.36M | ConnorWinfield晶振 | CWX823 | 15.36MHz |
| CWX823-019.44M | ConnorWinfield晶振 | CWX823 | 19.44MHz |
| CWX823-020.48M | ConnorWinfield晶振 | CWX823 | 20.48MHz |
| CWX823-045.0M | ConnorWinfield晶振 | CWX823 | 45MHz |
| CWX823-072.0M | ConnorWinfield晶振 | CWX823 | 72MHz |
